There are two types of geothermal systems - closed loop and open loop. Choose which system best fits your needs.

Open loop systems are the simplest. Used successfully for decades, ground water is drawn from an aquifer through one well, passes through the heat pump's heat exchanger, and is discharged to the same aquifer through a second well at a distance from the first. Generally, two to three gallons per minute per ton of capacity are necessary for effective heat exchange. Since the temperature of ground water is nearly constant throughout the year, open loops are a popular option in areas where they are permitted.

[Click to Open] or [Right Click to Save]

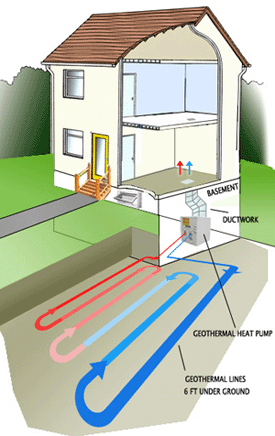

Closed loop installations involve burying pipe in trenches dug with back-hoes or chain trenches. Closed loop systems are becoming the most common. When properly installed, they are economical, efficient, and reliable. Water (or a water and antifreeze solution) is circulated through a continuous buried pipe. The length of loop piping varies depending on ground temperature, thermal conductivity of the ground, soil moisture, and system design.

[Click to Open] or [Right Click to Save]
